Dillon Rifle Dies Steel

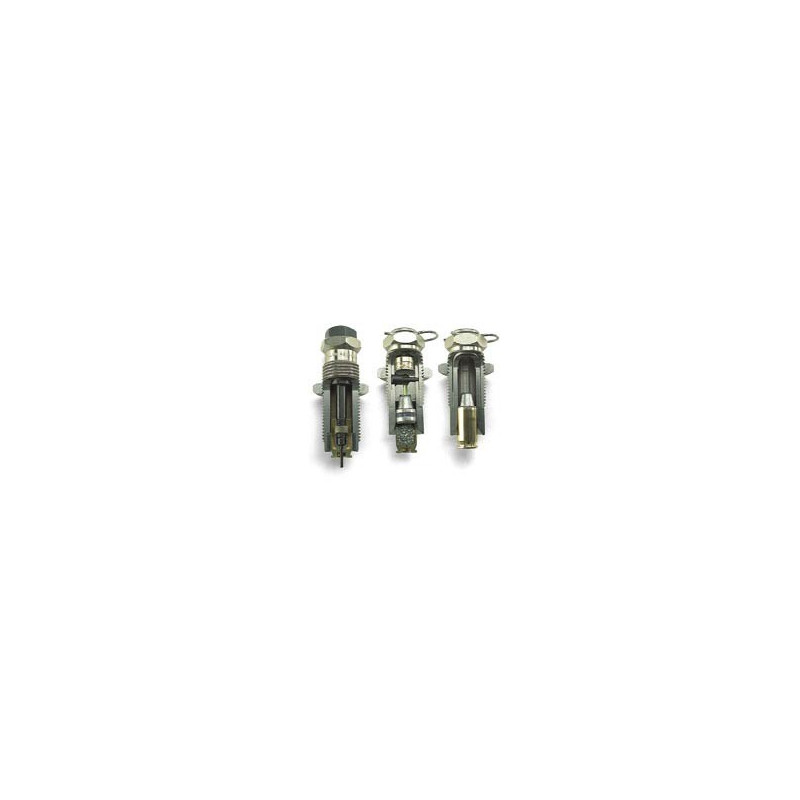

Sizing/Depriming Die Our sizing/depriming dies feature a unique floating decap assembly with a snap spring that throws the spent primer off the pin and eliminates the problem of primer draw back that often occurs when decapping military brass. The primary feature of Dillons size die design the long, tapered carbide ring with a radiused opening remains unchanged. That radiused opening, and its importance to progressive reloading, is one of the reasons why our seat and crimp dies are better. We found a way of manufacturing these dies that has enabled us to make the lead-in radius even bigger! The bigger radius makes progressive loading with our equipment even smoother but thats still only a part of the story.
Bullet Seating Die Our new quick-disassembly seat die allows the user to disassemble and clean the seat die without losing adjustment. In this manner, bullet lube and shavings can be quickly removed from the die, thereby guaranteeing a constant seating depth. Weve incorporated a flip-flop seating stem and a clip that enables you to remove the die insert and change the seating stem from round nose to semi-wadcutter without unscrewing a seating stem out of the die body. Weve always included both types of seating stems, but the new double-ended design makes it a simple matter to remove a pin, reverse the seating stem, make any minor seating depth adjustments that may be necessary and go on loading in a fraction of the time it used to take.
Crimp Die Weve made it easy for you to remove the die insert for cleaning without having to change the critical crimp adjustment. Once your crimp die is set for the proper amount of crimp, youll never have to change it. This is especially good news for all of you who load lead bullets! Before, you had to unscrew the die from the toolhead and disassemble the die in order to remove any bullet lube or lead residue. Then, you had to start from square one to re-adjust the crimp. Those days are over. All you have to do now is pop a clip and the die insert drops into your hand for cleaning.
NOTE: All Dillon Pistol Die sets include our sizer/ decap die, seat die and a separate crimp die. (Taper crimp for autos; accu-crimp for revolvers.)
